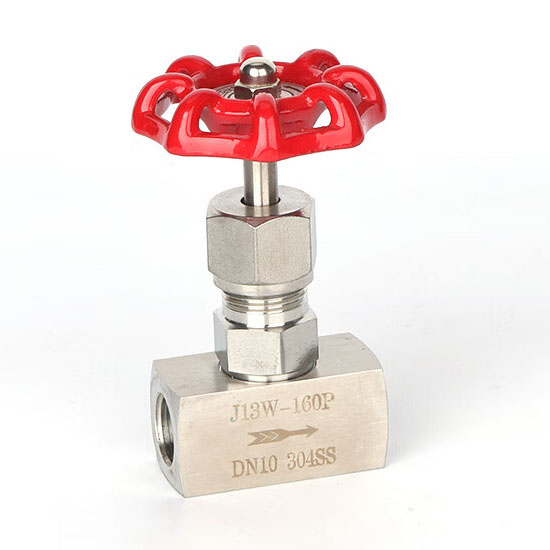

Stainless Steel Female Thread Needle Valve
Main parts material
| No | Part Name | Material |
| 1 | Body | A105, 304, 316L, 321 |
| 2 | Gasket | Copper, PTFE |
| 3 | Cap | A105, 304, 316L, 321 |
| 4 | Packing | Graphite, PTFE |
| 5 | Stem | 2Cr13, 304, 316 |
| 6 | Gland | A105, 304, 316L, 321 |
| 7 | Handwheel | Steel |
Main dimensions
| PN, MPA | DN, MM | L | H | G | D0 | Approximate weight, kg |
| 16,0 | 6 | 52 | 87 | 1/4 | 70 |
0,44 |
| 10 | 52 | 87 | 3/8 | 70 |
0,42 | |
| 15 | 52 | 87 | 1/2 | 70 |
0,4 | |
| 20 | 68 | 109 | 3/4 | 80 |
0,6 | |
| 25 | 78 | 122 | 1 | 100 |
0,8 | |
| 32 | 95 | 180 | 11/4 | 140 |
2,2 | |
| 40 | 110 | 200 | 11/2 | 160 |
3,0 |
