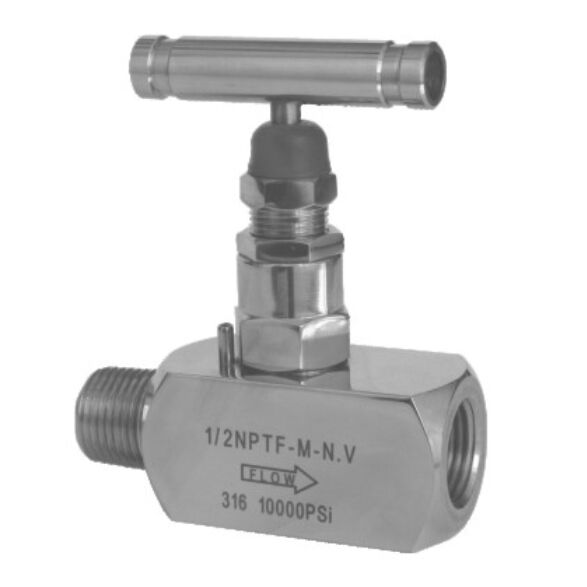

Stainless steel needle valve 15nzh54bk(with external thread x with internal thread
Stainless steel needle valve 15nzh54bk(with external thread x with internal thread)
Description
This compact and economical mini-series needle valve is manufactured to the highest standards. Designed with low torque, it is lightweight and easy to operate. The pressure reaches 6,000 psi (414 bar). Its high-precision metal cover and body are sealed, making it suitable for high-pressure operation.
Design features
① Compactness and lightness;
Sealing ring + PTFE sealing device, absolutely no leakage during valve stem operation;
Sealing under the thread can prevent the thread from being corroded by the liquid medium;
④ Two flow ports with the correct flow direction;
⑤ Working temperature: -15 ℃ to 170 ℃;
⑥ The inlet seal is installed according to the standard;
The firmware can be flexibly replaced to extend its service life .;
The raw materials of all the main parts can be tracked.
⑨100% passed static pressure test;
⑩ The upper seat is designed to extend the life of the gasket;
All construction materials comply with the requirements of the latest version of NACE MR-01-75.
Drawing of Stainless steel needle valve 15nzh54bk(with external thread x with internal thread
Main parts material
| No | Part Name | Material |
| 1 | Welding connecting pipe | Steel 20, A105, SS304, SS304L, SS316, SS316L |
| 2 | Flat gasket | PTFE, RTFE |
| 3 | Connecting nut | Steel 20, A105, SS304, SS304L, SS316, SS316L |
| 4 | Body | Steel 20, A105, SS304, SS304L, SS316, SS316L |
| 5 | Packing gasket | PTFE, Flexible graphite, metall+graphite |
| 6 | Packing | PTFE, Flexible graphite |
| 7 | Packing Gland | Steel 20, A105, SS304, SS304L, SS316, SS316L |
| 8 | Locking nut | Steel 20, A105, SS304, SS304L, SS316, SS316L |
| 9 | Stem | Steel 20, A105, SS304, SS304L, SS316, SS316L |
| 10 | Handwheel | Steel 20, A105, SS304, SS304L, SS316, SS316L |
| 11 | Nut | Steel 20, A105, SS304, SS304L, SS316, SS316L |
Main dimensions
| Size | A | B | C | D | Approximate weight, kg |
| 1/4 NPT MxF | 58 | 48 | 46 | 19 | 0.18 |
| 1/4 NPT FxF | 58 | 48 | 46 | 19 | 0.18 |
| 1/4 NPT MxM | 58 | 48 | 46 | 19 | 0.18 |
*The above dimensions are for reference only.
