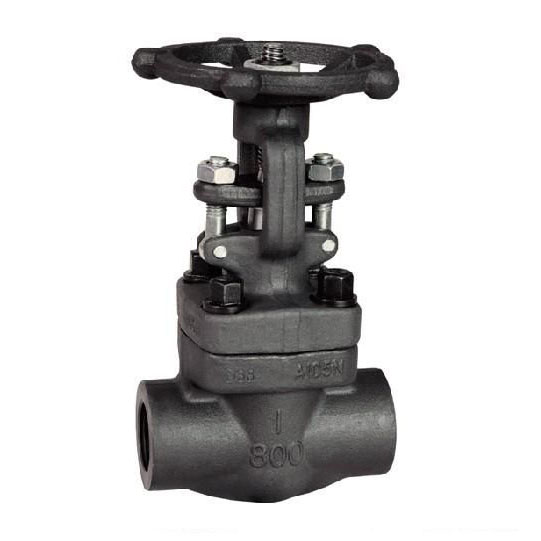

FEMALE SCREWED FORGED STEEL GATE VALVE
Wedge steel gate valves (ZKS). The valves are designed to be installed as a shut-off mechanism on pipelines transporting liquid and gaseous media. The valves ensure that the flow of the medium is blocked in any direction. Connection to the pipeline: flange, coupling, butt welding, lap welding.
Drawing of a forged steel gate valve with rising stem
Materials of Main Parts
| № | Part Name | Material |
| 1 | Body | A105 |
| 2 | Seat | 2Cr13 |
| 3 | Disc | 2Cr13 |
| 4 | Stem | 2Cr13 |
| 5 | Gasket | 304+graphite |
| 6 | Bonnet | A105 |
| 7 | Stud | Ст.35 |
| 8 | Packing | Flexible graphite |
| 9 | Packing Gland | WCB |
| 10 | Gland | WCB |
| 11 | Eyebolt | Ст.35 |
| 12 | Nut | Ст.45 |
| 13 | Stem nut | 2Cr13 |
| 14 | Handwheel | Grey Iron |
Main Size & Weight
| PN, MPa | DN, mm | d | L | W | H≈ | Approximate weight, kg | |||
| FB | RB | FB | RB | FB | RB | ||||
| 1,6-10,0 | 8 | - | 7 | - | 79 | 100 | 166 | 2.2 | - |
| 10 | 8 | 10 | 7 | 79 | 100 | 166 | 2.2 | 2.2 | |
| 15 | 10 | 10 | 10 | 79 | 100 | 166 | 2.2 | 2.2 | |
| 20 | 15 | 13 | 13 | 92 | 100 | 169 | 2.2 | 2.2 | |
| 25 | 20 | 18 | 18 | 111 | 125 | 193 | 4.7 | 4.3 | |
| 32 | 25 | 24 | 24 | 120 | 160 | 236 | 5.9 | 5.9 | |
| 40 | 32 | 29 | 29 | 120 | 160 | 246 | 6.9 | 6.9 | |
| 50 | 40 | 36.5 | 36.5 | 140 | 180 | 283 | 11.1 | 11.1 | |
| - | 50 | - | 46.5 | 178 | 200 | 330 | - | 15.2 | |
| PN, MPa | DN, mm | d(FB) | L | W | H≈ | Approximate weight, kg |
| 16,0 | 8 | 7 | 102 | 120 | 166 | 3.6 |
| 10 | 10 | 102 | 120 | 166 | 3.5 | |
| 15 | 13 | 102 | 120 | 169 | 3.4 | |
| 20 | 18 | 111 | 125 | 193 | 3.8 | |
| 25 | 24 | 120 | 160 | 230 | 7.8 | |
| 32 | 29 | 120 | 160 | 246 | 11.9 | |
| 40 | 36.5 | 140 | 180 | 283 | 12.2 | |
| 50 | 46.5 | 178 | 200 | 330 | 21.9 |
*The above dimensions are for reference only.
