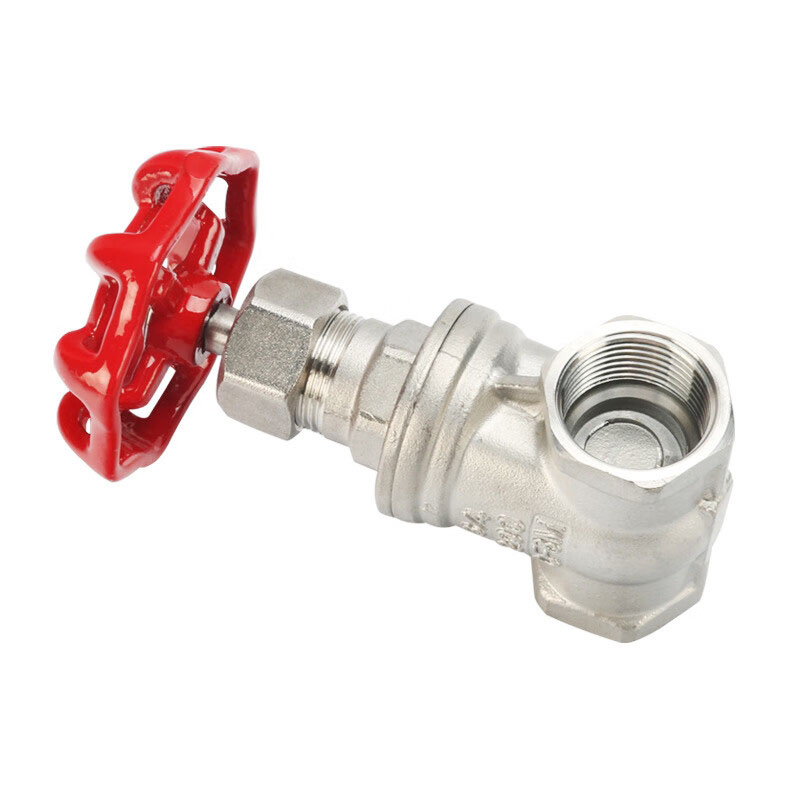

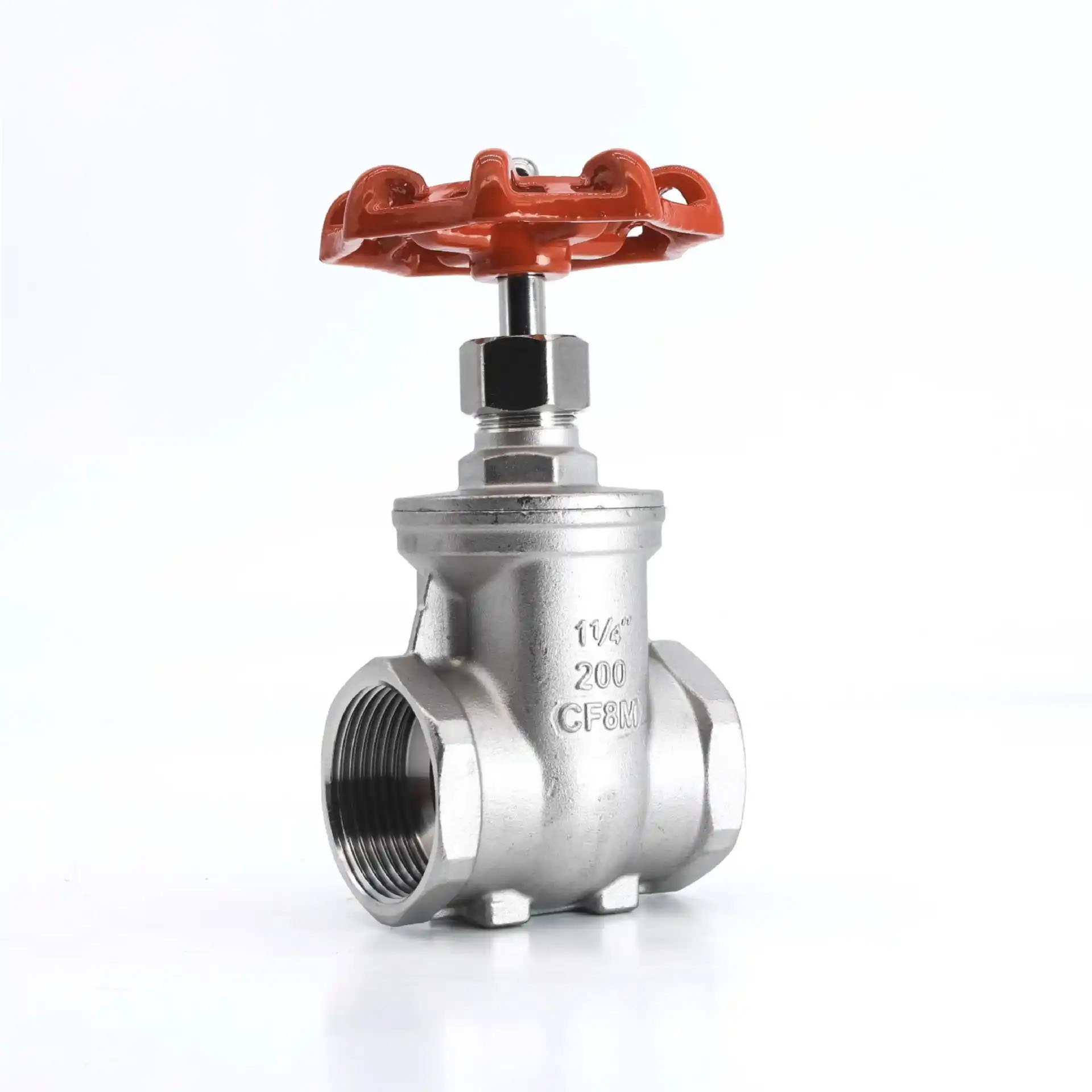

NON-RISING STEM FEMALE SCREWED STAINLESS STEEL GATE VALVE
Coupling gate valve with sliding spindle
A coupling gate valve with a non-movable spindle is designed for installation on pipelines as a shut-off device. The gate valve is installed on a horizontal pipeline with the flywheel facing up. On a vertical pipeline in the (flat) position with a horizontal spindle arrangement.
Technical specifications: Working environment - water, oil, air Seal tightness - class "A" (without leakage)
Nominal pressure PN, MPa (kgf/cm2) - 1.6
Connection to the pipeline - coupling/threaded
Body material – stainless steel 304, 316
The material of the gate seal is stainless steel The drive is manual (flywheel)
Drawing of a stainless steel gate valve with non-rising stem
Materials of Main Parts
| Part Name | Material | Material | Material |
| Body | WCB | 304 | 316 |
| Bonnet | WCB | 304 | 316 |
| Disc | 304 | 304 | 316 |
| Stem | 304 | 304 | 316 |
| Seat | 304, 316 | ||
| Packing | PTFE | ||
Main Size & Weight
| PN, MPa | DN, mm | G | L | B | H | W | Approximate weight, kg |
| 1.6 | 15 | 1/2” | 55 | 31 | 90 | 70 | 0.47 |
| 20 | 3/4” | 60 | 38 | 98 | 70 | 0.55 | |
| 25 | 1” | 69 | 46 | 108 | 70 | 0.8 | |
| 32 | 11/4” | 76 | 56 | 128 | 80 | 1.21 | |
| 40 | 11/2” | 80 | 63 | 152 | 100 | 1.78 | |
| 50 | 2” | 92 | 76 | 166 | 100 | 2.5 |
*The above dimensions are for reference only.
