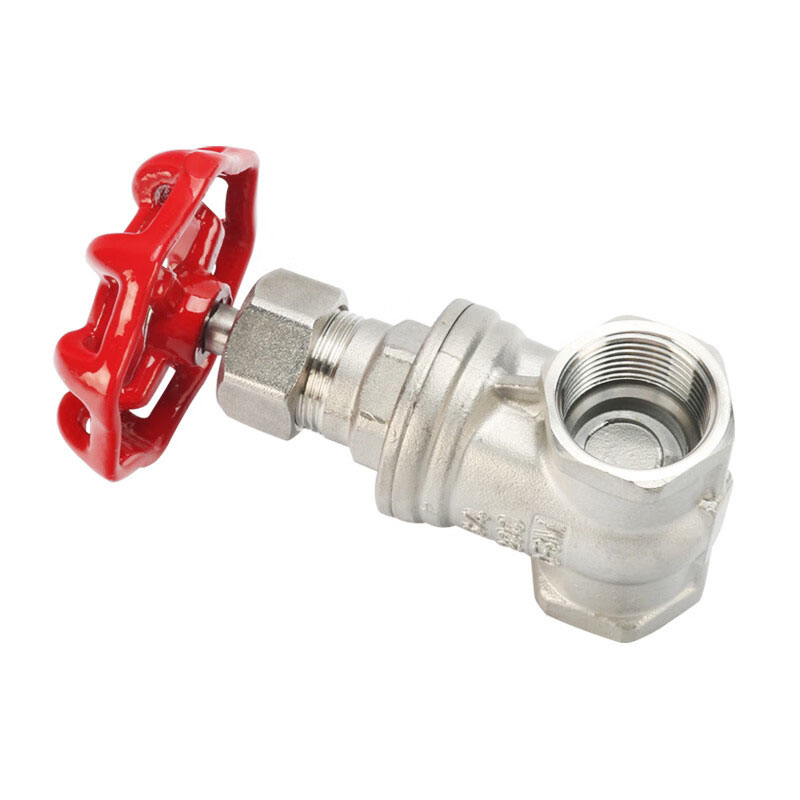

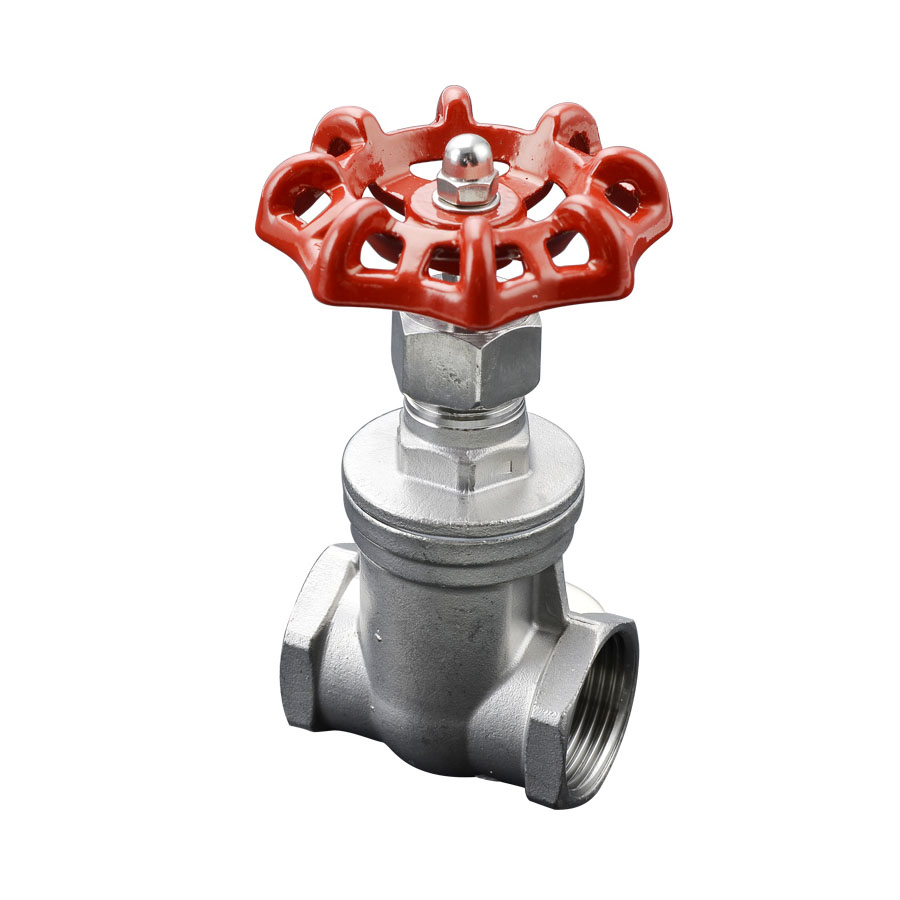

NON-RISING STEM FEMALE SCREWED BRASS GATE VALVE
A brass gate valve is one of the types of shut—off valves. It is most often used for installation in water supply lines (cold, hot), heating, and compressed gas supply. It has a concise, complete design, attractive appearance, excellent operational properties.

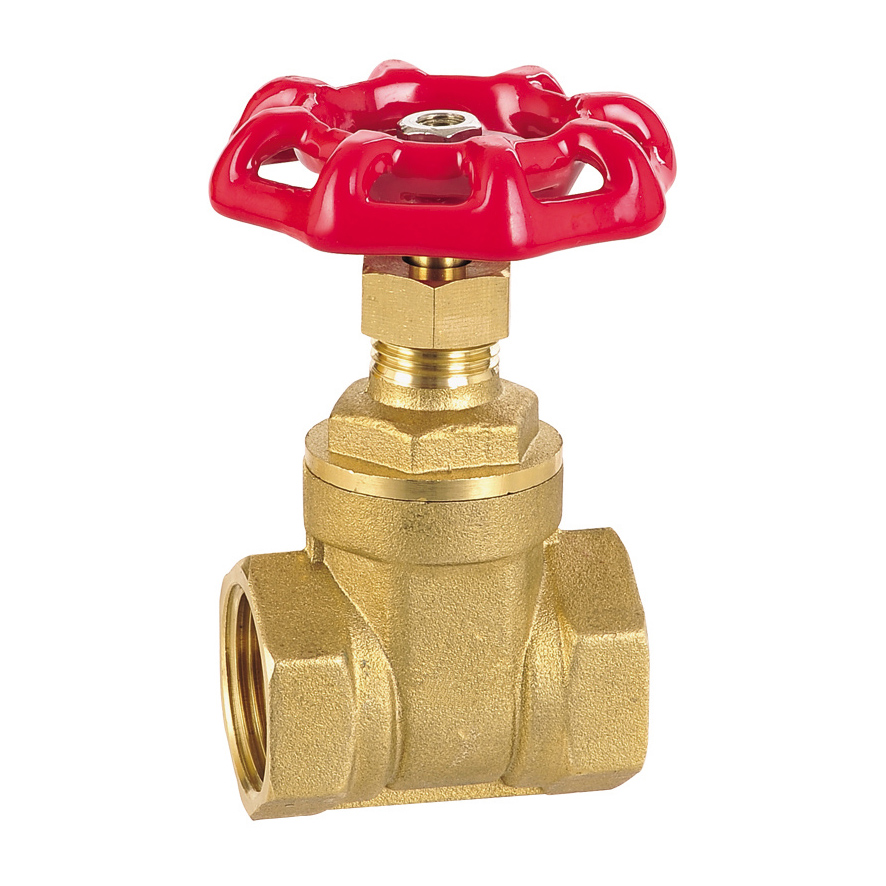

Drawing of a brass gate valve with non-rising stem
Materials of Main Parts
| № | Part Name | Material |
| 1 | Body | Brass |
| 2 | Disc | Brass |
| 3 | Stem | Brass |
| 4 | Bonnet | Brass |
| 5 | Packing | PTFE |
| 6 | Nut | Brass |
| 7 | Handwheel | Grey Iron |
Main Size & Weight
| PN | DN | G | A | B | C | F |
| 16 | 15 | 1/2" | 67 | 43 | 13 | 12.5 |
| 16 | 20 | 3/4" | 74 | 47 | 17 | 13.5 |
| 16 | 25 | 1" | 82 | 50 | 21.5 | 14.5 |
| 16 | 32 | 11/4" | 92 | 54 | 26 | 15 |
| 16 | 40 | 11/2" | 106 | 56 | 31 | 15.5 |
| 16 | 50 | 2" | 128 | 64 | 40 | 16.5 |
| 16 | 65 | 21/2" | 163 | 80 | 53 | 21.5 |
| 16 | 80 | 3" | 177 | 84 | 61 | 22 |
| 16 | 100 | 4" | 220 | 92 | 73 | 23.5 |
*The above dimensions are for reference only.
