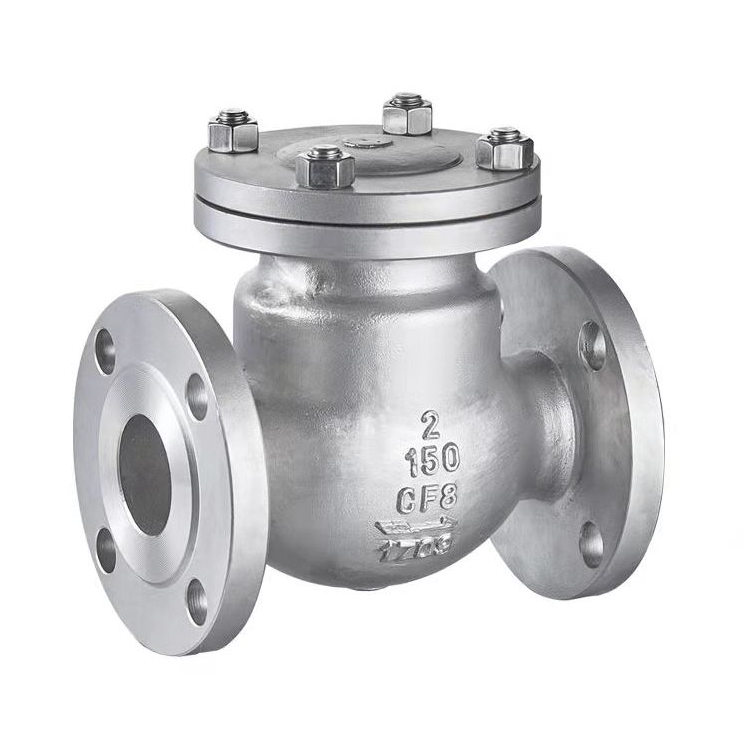

Swing check valve CF8

Product Name : Swing check valve CF8

Product ID : 025

Directions

API/BS STAILESS STEEL SWING CHECK VALVE CLASS 150

Materials of Main Parts

No.	Part Name	Material
1	Body	ASTM A216 GR WCB, A351 CF8, A217 WC6, A352 LCB
2	Seat	ASTM A105, A182 F304
3	Disc	ASTM A216 GR WCB, A351 CF8, A217 WC6, A352 LCB
4	Arm	ASTM A216 GR WCB, A351 CF8, A217 WC6, A352 LCB
5	Pin	A182 F6A, A182 F304
6	Connector	ASTM A216 GR WCB, A351 CF8, A217 WC6, A352 LCB
7	Gasket	Flexible Graphite+SS304
8	Bonnet	ASTM A216 GR WCB, A351 CF8, A217 WC6, A352 LCB
9	Stud	ASTM A193 B7, A194 B8
10	Nut	A194 2H, A193 8, A194 4

Main Size & Weight

CLASS	NPS(")	L(RF)	L(BW)	L(RJ)	H	Weight(kg)		Cv
CLASS	NPS(")	L(RF)	L(BW)	L(RJ)	H	RF	BW	Cv
150	11/2	165	165	178	147	13	9	-
	2	203	203	216	151	17	12	-
	21/2	216	216	229	164	23	15	-
	3	241	241	254	178	29	19	285
	4	292	292	305	190	40	27	520
	6	356	356	368	228	78	56	1245
	8	495	495	508	292	140	104	2280
	10	622	622	635	304	215	178	3570
	12	699	699	711	342	295	220	5300
	14	787	787	800	406	408	308	6500
	16	864	864	876	508	533	413	8615
	18	978	978	991	584	670	530	11500
	20	978	978	991	622	1000	830	14300
	24	1295	1295	1308	711	1950	1710	20865
	26	1295	1295	-	762	2300	2035	25165
	28	1448	1448	-	838	2500	2190	29513
	30	1524	1524	-	889	2600	2244	33910
	32	1727	1727	-	1016	2800	2345	43130
	36	1955	1955	-	1092	3200	2613	61570

CLASS	NPS(")	L(RF)	L(BW)	L(RJ)	H	Weight(kg)		Cv
CLASS	NPS(")	L(RF)	L(BW)	L(RJ)	H	RF	BW	Cv
300	11/2	241	241	254	155	17	11	-
	2	267	267	283	161	20	12	-
	21/2	292	292	308	175	24	15	-
	3	318	318	333	203	45	29	285
	4	356	356	371	228	65	41	515
	6	445	445	460	279	115	75	1245
	8	533	533	549	342	215	156	2285
	10	622	622	638	381	310	220	3575
	12	711	711	727	431	470	350	5345
	14	838	838	854	482	550	386	6510
	16	864	864	879	508	870	574	8620
	18	978	978	994	584	1025	855	11155
	20	1016	1016	1035	660	1500	1175	13935
	24	1346	1346	1368	762	2500	2030	20420
	26	1346	1346	1372	762	2800	2275	25000
	28	1499	1499	1524	889	3000	2404	28750
	30	1594	1594	1619	977	3400	2710	33910
	32	1727	1727	-	1016	3700	2897	42230
	36	2083	2083	-	1143	4300	3330	61570

CLASS	NPS(")	L(RF)	L(BW)	L(RJ)	H	Weight(kg)		Cv
CLASS	NPS(")	L(RF)	L(BW)	L(RJ)	H	RF	BW	Cv
600	2	292	292	295	161	34	25	-
	21/2	330	330	333	178	45	33	-
	3	356	356	359	203	60	44	285
	4	432	432	435	228	95	64	520
	6	559	559	562	304	200	134	1245
	8	660	660	664	406	275	175	2210
	10	787	787	791	469	450	280	3600
	12	838	838	841	533	615	415	5120
	14	889	889	892	609	850	550	6150
	16	991	991	994	660	1150	720	8070
	18	1092	1092	1095	774	1620	1120	10510
	20	1194	1194	1200	889	2000	1400	12855
	24	1397	1397	1407	965	3100	2220	18680
	26	1448	1448	1461	1016	3800	3010	24600
	28	1600	1600	1613	1066	4600	3724	29950
	30	1651	1651	1664	1168	5500	4528	34680
