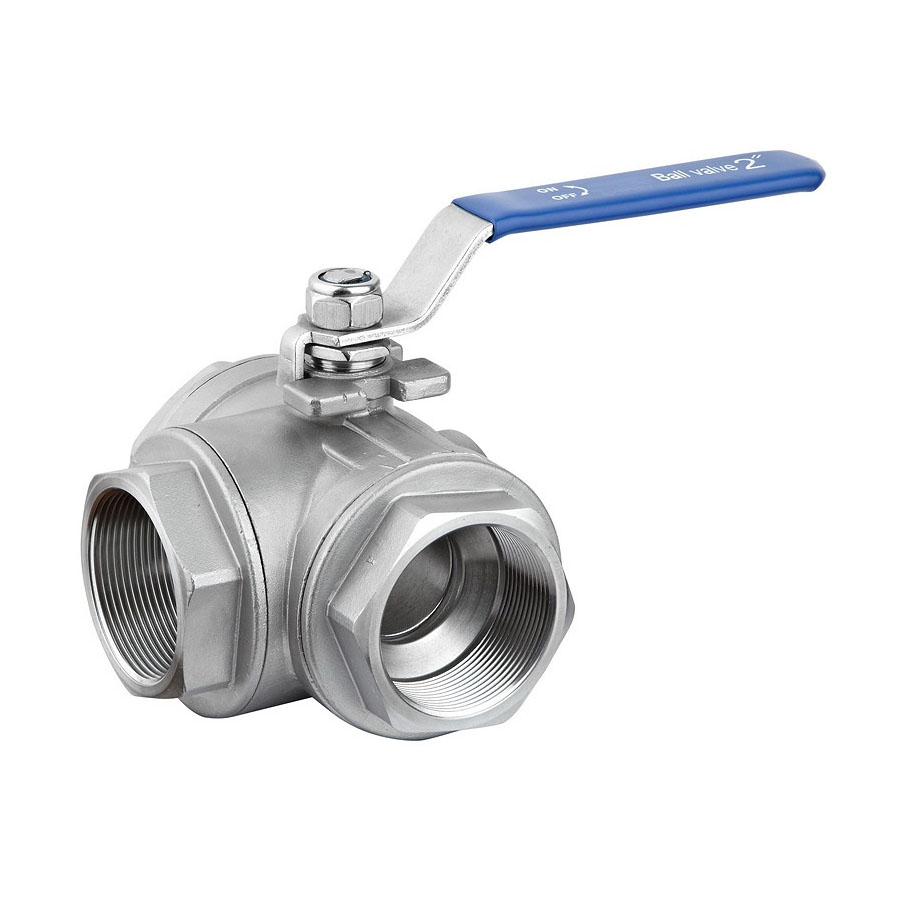

Three port female threaded ball valve with handle
Компактная структура, отличная герметичность, хорошая способность регулировать поток и высокая коррозионная стойкость. Он используется в нефтяной, химической, газовой, водной промышленности для перекрытия и регулирования потока среды.
Drawing of three-port female threaded ball valve with handle
Materials of Main Parts
| No. | Part Name | Material |
| 1 | Body | CF8 |
| 2 | Ball | 304 |
| 3 | Seat | PTFE |
| 4 | Gasket | PTFE |
| 5 | Bonnet | CF8 |
| 6 | Stem | 304 |
| 7 | Packing | PTFE |
| 8 | Gland | CF8 |
| 9 | Handle | Grey Iron |
Main Size & Weight
| DN（mm) | G | L | d | H | W |
| 8 | 1/4" | 71 | 10 | 56 | 110 |
| 10 | 3/8“ | 71 | 12 | 56 | 110 |
| 15 | 1/2” | 74 | 12 | 58 | 110 |
| 20 | 3/4“ | 88 | 15 | 60 | 120 |
| 25 | 1” | 92 | 20 | 70 | 140 |
| 32 | 11/4“ | 124 | 25 | 82 | 140 |
| 40 | 11/2" | 138 | 32 | 95 | 180 |
| 50 | 2" | 154 | 38 | 100 | 200 |
| 65 | 21/2" | 180 | 48.5 | 180 | 240 |
*The above dimensions are for reference only.
